Configuring an SMB Share (Windows Share) on TrueNAS

Samba is an open-source software suite that enables file and print sharing between computers running Windows and those running Unix or Linux. It implements the SMB (Server Message Block) protocol, which is used for network file sharing.

We are going to configure an SMB share on the same dataset Virtualizing TrueNAS SCALE on Proxmox: Setup with ZFS & NFS so Windows or any SMB clients can access it.

Create or Identify a User for SMB Access

Unlike NFS, SMB will require user authentication by default. TrueNAS does not allow SMB sharing as the root user or other built-in accounts, so we need a regular user. We have already created an admin for the Web UI (truenas_admin), but it’s highly recommended to create a separate user for file sharing.

In TrueNAS web UI, go to Credentials, Users, click the Add button. Enter a username (e.g., nmaximo7) and a password.

For Primary Group, TrueNAS will create a group with the same name by default. It’s not a problem because all new users belong to the group builtin_users which should have SMB capability by default. Make sure that SMB User is checked and set its Home directory to your dataset, e.g., /mnt/mynaspool/data.

Now, adjust dataset permissions to give this user access. In the TrueNAS Web UI, navigate back to Datasets, find your recently created dataset (mynaspools, data), and Edit Permissions. Set the owner user and group to our user (e.g., “nmaximo7” in this example), make sure that the flags Apply User/Group are checked to update ownership, and Access Mode to 755, so that the dataset is already prepare for the user.

Create the SMB Share in TrueNAS

1. In the TrueNAS Web UI, navigate to Shares, Windows (SMB) Shares and click Add.
2. Give the share a Name (it will be the share name seen by clients, e.g., “data”) and a comment/description if your soul so desires.
3. For Path (Select pool, dataset, or directory to share), browse to your dataset (e.g., “/mnt/mynaspool/data”).
4. Click Advanced Options, and tick Allow Guest Access to make this share to be guest accessible (and ensure the smbguest account is enabled). But since we created nmaximo7, we’ll use authenticated access.
5. If the SMB service isn’t already running, TrueNAS will prompt you to start it – agree to start the SMB service.

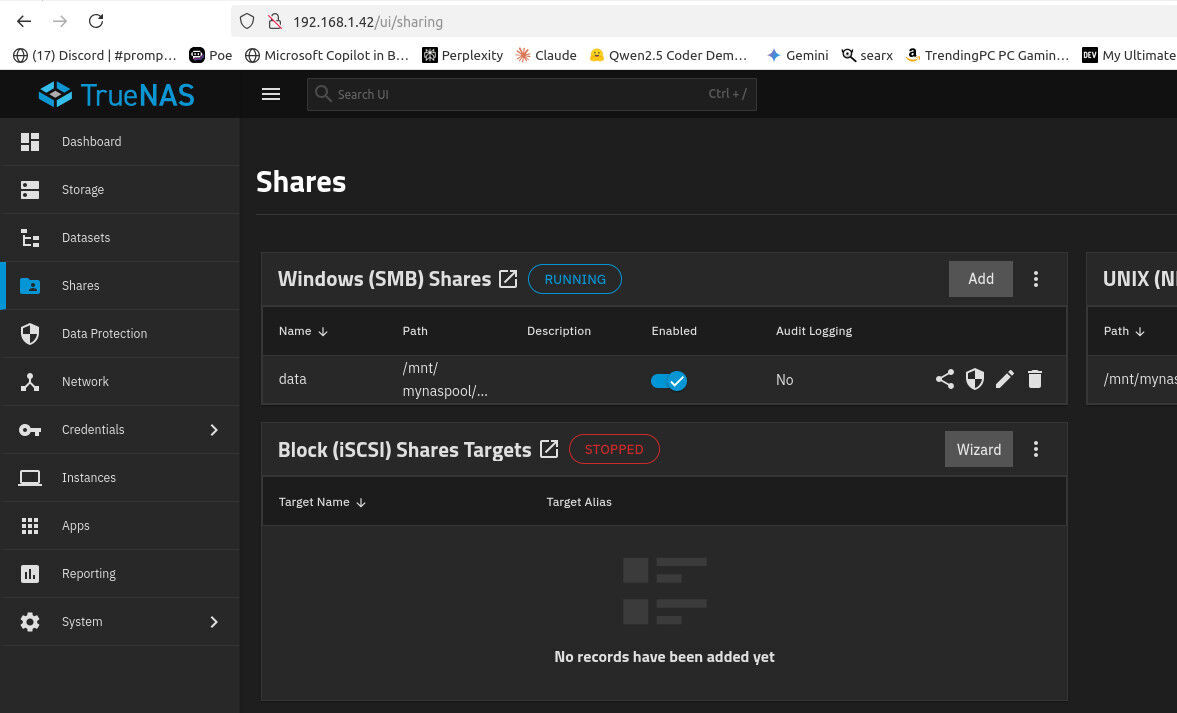

We can see that our SMB share is created and listed under Windows (SMB) Shares and the SMB service is running.

Accessing the SMB Share from Windows

On a Windows machine (Windows 10/11, etc.) in the same network, open File explorer and type in the address bar \\< TrueNAS-IP > (e,g., \\192.168.1.42) and press Enter.

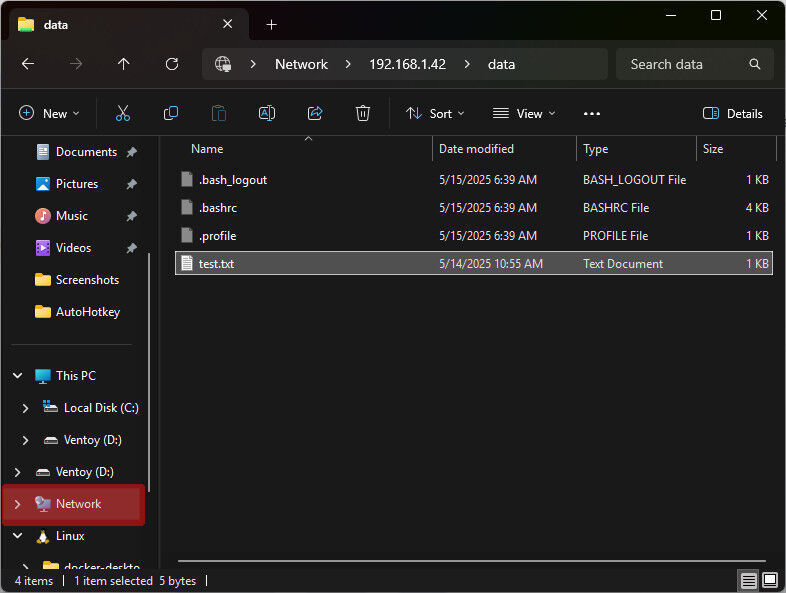

This should contact the TrueNAS server and prompt for credentials. Enter the TrueNAS nmaximo7 credentials. Then, you should see the shared folder (the name of the SMB share).

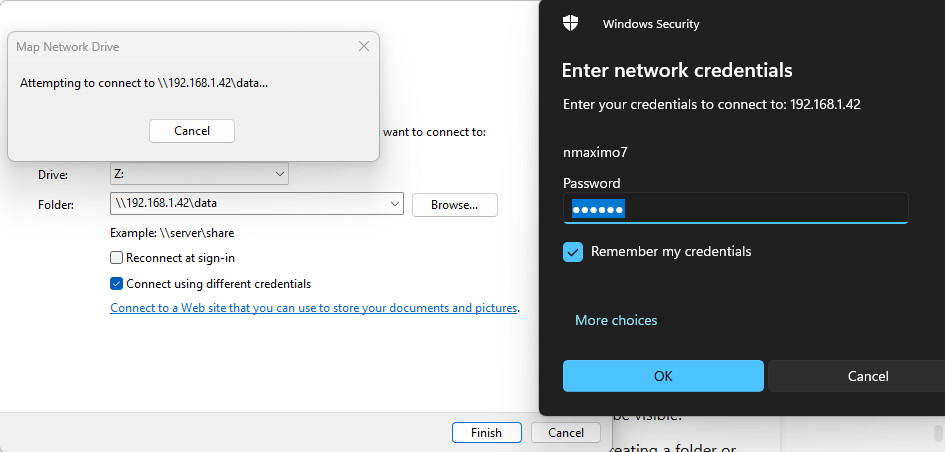

Alternatively, you can use the Map Network Drive feature to assign it a drive letter for easy and convenient access.

Open File Explorer from the taskbar. Select This PC from the left pane. Then, on the File Explorer ribbon (···), select More, Map network drive.

In the Drive list, select a drive letter (Any available letter will work just fine).

In the Folder box, type the path to the share, e.g. \\192.168.1.42\data (replace with your NAS IP and share name). To connect every time you sign in (persistent) to your PC, select Reconnect at sign-in, and Connect using differential credentials if your Windows login is no the same as the NAS user. Then, select Finish.

Accessing SMB from Linux

GNU/Linux can also access SMB shares. On a Linux client, install CFIS utils and mont the SMB base share on a Linux mount point.

mkdir /mnt/samba
# GNU/Linux system can access SMS shares using the CFIS protocol.
# To do this, ensure that the CIFS utilities are installed on your client system
# You can mount a Samba share from a TrueNas server by executing the following command:
~ sudo mount -t cifs -o username=username,password=password //192.168.1.42/data /mnt/samba
# Replace username and password with your real credentials and adjust the IP addRTL812ress and share path as needed.
