Dotfiles with Git + GNU Stow. Servers: Syncthing, Docker, Pi-hole, OpenVPN.

  1. We need to install stow, a symlink farm manager: sudo apt install stow git
  2. First-Time git setup. Set your user name and email address: git config ‐‐global user.name “userName”. git config ‐‐global user.email “[email protected]. Then, check your settings: git config ‐‐list
  3. Go to github. Log in to your account. Click on the New repository button or the + icon, then click on New repository. Next you have to fill out a name of the repository (dotfiles), a description (it is really optional), and select its visibility or access permission (public -Anyone on the internet can see this repository. You choose who can commit- or private -You choose who can see and commit to this repository-).
  4. After that you have your new repository, so you can copy the repository link by clicking on the green Code button. Open a terminal and clone the repository (very easy setup):
  git clone https://github.com/nmaximo7/dotfiles.git
  1. Open the directory dotfiles with Visual Studio Code: code dotfiles.

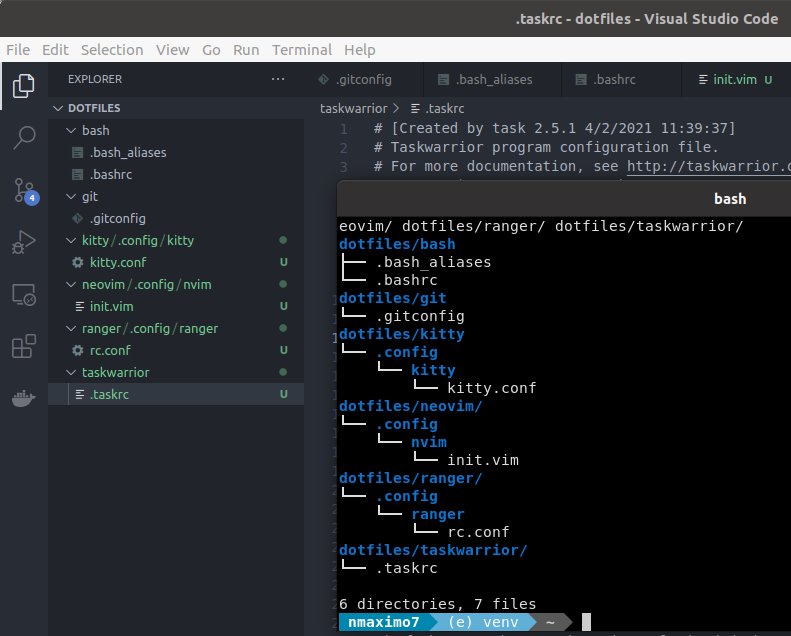

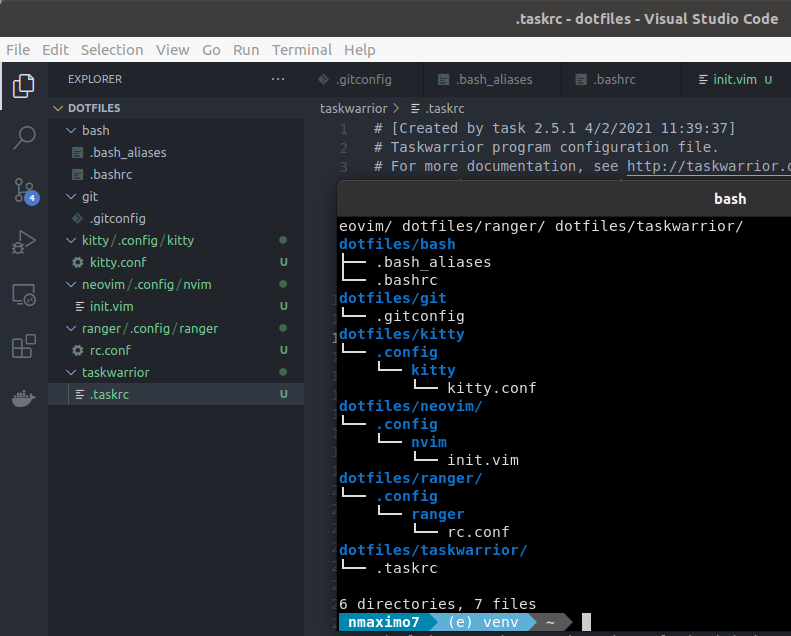

  2. Mirror your home’s structure inside the dotfiles directory, e.g., create a directory git, and a file “.gitconfig” inside git; create a directory bash, and two files “.bash_aliases” and “.bashrc” inside bash. Manage and sync dotfiles with Git + GNU Stow

    Manage and sync dotfiles with Git + GNU Stow

  3. Check if stow is going to create the right symlinks or not before creating then: stow ‐‐adopt -nvt ~ * (~ directory home, * the dotfiles directory).

    And then create them: stow ‐‐adopt -vt ~ * The flag -n tells stow not to perform any operations that modify the filesystem, but merely show what would happen. -t is the target (~, the home directory).

    MV: .config/calcurse/conf -> dotfiles/Calcurse/.config/calcurse/conf LINK: .config/calcurse/conf => ../../dotfiles/Calcurse/.config/calcurse/conf9. We use the git add . command to add any changes in the working directory to the staging area: git add .

  4. Save changes to the local repository: git commit -am “Initial commit”

  5. Upload the local repository content to our recently created github remote repository: git push.

  6. If you have a new computer, you will start by cloning the remote repository: git clone https://github.com/nmaximo7/dotfiles.git. After that you can update the local repository with: git pull.

  7. Stow the files and directories into the target directory. First, check that it is working as expected: stow ‐‐adopt -nvSt ~ *, then do it: stow ‐‐adopt -vSt ~ *

  1. Let’s install it on Ubuntu: sudo apt install syncthing-gtk (the GTK3-based GUI for syncthing, it will also install the package syncthing).
  2. Next let’s edit its config file (vi /home/user/.config/syncthing/config.xml) and change 127.0.0.1:8384 (only listening to localhost) to 0.0.0.0:8384.
  3. By default, the installation is made so that the service is run as root. You may want to check its status: sudo systemctl status [email protected]
  4. Install Mac (client). We should be able to access it: IP’s address:8384.
  5. For security purposes you may want to change your password: Actions, Settings, GUI Authentication User, GUI Autentication Password.
  6. Syncthing uses port 22000. If your computer has enabled the UFW firewall, then you need to allow traffic on port 22000: sudo ufw allow 22000/tcp
  7. You need to ensure Synching has been installed and configured on all systems. After that, _each device must be told about the other devices by exchanging device IDs. Obtain your Device ID (Server Ubuntu): Actions, Show ID (Copy). Client Mac: Add Remote Device, Device ID (Paste), Device Name (LinuxServer).
  8. Refresh the Web interface on the first device, the Ubuntu server. You will see the following message: Device…. wants to connect. Add new device? Click on Add Device (Device Name: MacClient) and wait patiently till Remote Devices, MacClient (Up to Date).
  9. We can synchronize two folders now. Click the Add Folder to add a new folder and give it a descriptive label and set the folder path (/mnt/discoExterno/documentos). On the Sharing tab, select MacClient.
  10. You need to wait till you see a message in your MacClient: LinuxServer wants to share folder “documentos”. Add new folder? Select Add, and define Folder Path.
  1. Let’s install it on the server: sudo apt install openssh-server. You may want to read our article about Advanced security.
  2. Display the IP addresses assigned to all interfaces: ip address show.
  3. If you want to connect to your server, you need to invoke the ssh command followed by your username and the IP address in the following format: ssh [email protected], e.g.,
  4. You may want to change the default behavior of the OpenSSH server application by editing the file sudo vi /etc/ssh/sshd_config. man sshd_config is the man’s page about the OpenSSH daemon configuration file. You could change the port (Port 2134), displays a banner (Banner /etc/issue.net), etc. Then you should test the validity of your configuration file (sudo sshd -t -f /etc/ssh/sshd_config) and restart the daemon (sudo systemctl restart sshd.service).
  5. Troubleshooting: Is ssh running? sudo systemctl status ssh.
  6. If the firewall is enabled on your system, you need to open up the SSH port: sudo ufw allow ssh
  1. Install the nfs-kernel-server package: sudo apt install nfs-kernel-server. NFS will translate any root operations on the client to the nobody:nogroup credentials: sudo chown -R nobody:nogroup /mnt/discoExterno/nfsShare/ where nfsShare is the folder that we want to share.
  2. Configure the NFS configuration file: sudo vi /etc/exports:
    /mnt/discoExterno/nfsShare 192.168.1.0/255.255.255.0(rw,sync,insecure,all_squash,anonuid=1000,anongid=1000)

    The syntax is as follows: Directory_to_share (/mnt/discoExterno/nfsShare) client (192.168.1.0/255.255.255.0, the private network) options (rw: It gives the client computer both read and write access; sync: It forces NFS to write changes to disk before replying; insecure, all_squash, anonuid=1000, anongid=1000: macOS specific).
  3. Restart the NFS server: sudo systemctl restart nfs-kernel-server.
  4. Allow NFS Access through the Firewall: sudo ufw allow from 192.168.1.0/24 to any port nfs
  5. Client (macOS). Is the resource available in the NFS server? showmount -e 192.168.1.48 (192.168.1.48 is the NFS server’s IP). In Finder, press cmd + k and enter the path to the NFS server/share: NFS

    NFS

  6. macOS’s specific configuration (Sierra): sudo vi /etc/auto_master:
      /-    auto_nfs    -nobrowse,nosuid

    sudo vi /etc/auto_nfs:
    /../Volumes/my_mount    -fstype=nfs,noowners,nolockd,noresvport,hard,bg,intr,rw,tcp,nfc nfs://[email protected]:/mnt/discoExterno/nfsShare


sudo automount -cv. Finally, add /Volumes/nfsShare to System Settings, Users & Groups, Login Items.

  1. Let’s install Docker: sudo apt install docker.io. Let’s know the Docker version information: docker ‐‐version. Check whether Docker is running: sudo systemctl status docker
  2. We should start Docker and make it enable automatically on system boot: sudo systemctl enable ‐‐now docker.
  3. Add your user to the docker group: sudo usermod -aG docker ${USER}.
  4. It’s time to test it: docker run hello-world.
  1. Ubuntu runs systemd-resolved which listens on port 53. We need to disable (sudo systemctl disable systemd-resolved.service) and stop it (sudo systemctl stop systemd-resolved.service).
  2. Edit /etc/systemd/resolved.conf: DNS=1.1.1.1 and DNSStubListener=no.
  3. Delete the symlink /etc/resolv.conf: rm /etc/resolv.conf. Change the /etc/resolv.conf symlink to point to /run/systemd/resolve/resolv.conf: ln -s /run/systemd/resolve/resolv.conf /etc/resolv.conf. You could get more information in Docker Pi-hole, Installing on Ubuntu.
  4. Restart systemd-resolved using the following command: systemctl restart systemd-resolved.
  5. Download, configure, and run Pi-Hole container on Docker:
      wget https://raw.githubusercontent.com/pi-hole/docker-pi-hole/master/docker_run.sh
      sudo chmod +x docker_run.sh
      sudo ./docker_run.sh_

    #!/bin/bash # https://github.com/pi-hole/docker-pi-hole/blob/master/README.md. This is docker_run.sh:

    PIHOLE_BASE="${PIHOLE_BASE:-$(pwd)}"
    [[ -d "$PIHOLE_BASE" ]] || mkdir -p "$PIHOLE_BASE" || { echo "Couldn't create storage directory: $PIHOLE_BASE"; exit 1; }

    # Note: ServerIP should be replaced with your external ip.
    docker run -d --name pihole -p 53:53/tcp -p 53:53/udp \ # This container uses 2 popular ports, port 53 and port 80.
        -p 80:80 \
        -e TZ="Europe/Madrid" \ # Set your timezone to make sure logs rotate at local midnight
        -v "${PIHOLE_BASE}/etc-pihole/:/etc/pihole/" \
        -v "${PIHOLE_BASE}/etc-dnsmasq.d/:/etc/dnsmasq.d/" \
        --dns=8.8.4.4 --dns=1.1.1.1 \ # Upstream DNS servers
        --restart=unless-stopped \
        --hostname pi.hole \
        -e VIRTUAL_HOST="pi.hole" \
        -e PROXY_LOCATION="pi.hole" \
        -e ServerIP="192.168.1.48" \ # Set to your server's LAN IP: ip addr show
        pihole/pihole:latest

    printf 'Starting up pihole container '
    for i in $(seq 1 20); do
      if [ "$(docker inspect -f "{{.State.Health.Status}}" pihole)" == "healthy" ] ; then
        printf ' OK'
        echo -e "\n$(docker logs pihole 2> /dev/null | grep 'password:') for your pi-hole: https://${IP}/admin/"
        exit 0
      else
        sleep 3
        printf '.'
      fi

      if [ $i -eq 20 ] ; then
        echo -e "\nTimed out waiting for Pi-hole start, consult your container logs for more info (\`docker logs pihole\`)"
        exit 1
      fi
    done;

  6. The last command generates a random password. Go to a browser: IP’s address/admin and use this password.

    Use Pi_Hole for the entire LAN: ]Access your router: http://192.168.1.1/. The password is usually on the back of the router. Configuración avanzada/Advanced Setup, DNS: IP address Pi-hole.

  7. Add a new blocklist from The Firebog. Pi-hole, Croup management, Groups, Add a new group, and then, run pihole -g or update your gravity list (list of blocked domain) online after modifying your adlists: http://IP’s address/admin/gravity.php.
  8. Pi-hole cannot resolve DNS for itself, you may want to change your DNS in: Pi-hole, Settings, DNS, Upstream DNS Server.
  9. List all Docker containers: docker container ls -a. Stop a specific container: docker container stop [container_id] or all containers: docker container stop $(docker container ls –aq). Remove a stopped container: docker container rm [container_id] or all containers: docker container rm $(docker container ls –aq).
  1. Download openvpn-install.sh script to set up your OpenVPN server: wget https://git.io/vpn -O openvpn-install.sh.
  2. Make it executable and run it: sudo chmod +x openvpn-install.sh, sudo bash openvpn-install.sh.
  3. IPv4: Server IP’s address, e.g., 192.168.1.48. Protocol: UDP. Port: 1194. DNS server for the clients: Google is usually a good choice. A name for the first client: client.
  4. Restart the OpenVPN service: sudo systemctl restart openvpn. Check its status: sudo systemctl status openvpn.
  5. If you have UFW enabled, you will need to add a rule to the firewall to allow the port 1194 to make the connection: sudo ufw allow 1194/udp.
  6. Is the server listening in this port? sudo netstat -anp | grep openvpn.
  7. Get the client configuration file: sudo passwd root; su -; cp client.ovpn /home/myUser and transfer it to the client’s machine.
  8. On the client side, install TunnelBlink and open client.ovpn in TunnelBlink.
