Parametric curves are mathematical descriptions of curves using one or more parameters. Instead of expressing the relationship between x and y, parametric equations represent x and y (and maybe z) as functions of one or more parameters, often denoted by t, u, or other symbols.
A parametric curve in two dimensions is usually given by the equations: x = x(t), y = y(t), e.g., x = acos(t), y = asin(t). Notice that x2 + y2 = a2cos2(t) + a2sin2(t) = a2, that is, its shape is a circle where t = 0, (x, y) = (acos(0), asin(0)), t = π⁄2, (x, y) = (acos(π⁄2), asin(π⁄2)) = (0, a), and its trajectory is counter-clockwise (Figure 2.f.).
To calculate its arc length, ds2 = dx2 + dy2 ⇒ ds = $\sqrt{(\frac{dx}{dt})^2+(\frac{dy}{dt})^2}dt$, dx/dt = -asin(t), dy/dt = acos(t), ds = $\sqrt{(-asin(t))^2+(acos(t)^2)}dt = \sqrt{a^2}dt = adt,$ and a = ds/dt, that is, the speed or rate of change is a.
The equation of an ellipse in standard form with its center at the origin (0, 0) is given by: $\frac{x^2}{a^2}+\frac{y^2}{b^2} = 1.$
At t = 0, (2sin(0), cos(0)) = (0, 1). At t = π⁄2, (2sin(π⁄2), cos(π⁄2)) = (2, 0), so its trajectory is clockwise.
$\frac{ds}{dt}Polar Coordinates. = \sqrt{(2cos(t))^2+(sin(t))^2}$. Arc length = $\int_{0}^{2π} \sqrt{(2cos(t))^2+(sin(t))^2}dt = \int_{0}^{2π} \sqrt{4cos^2(t)+sin^2(t)}dt$

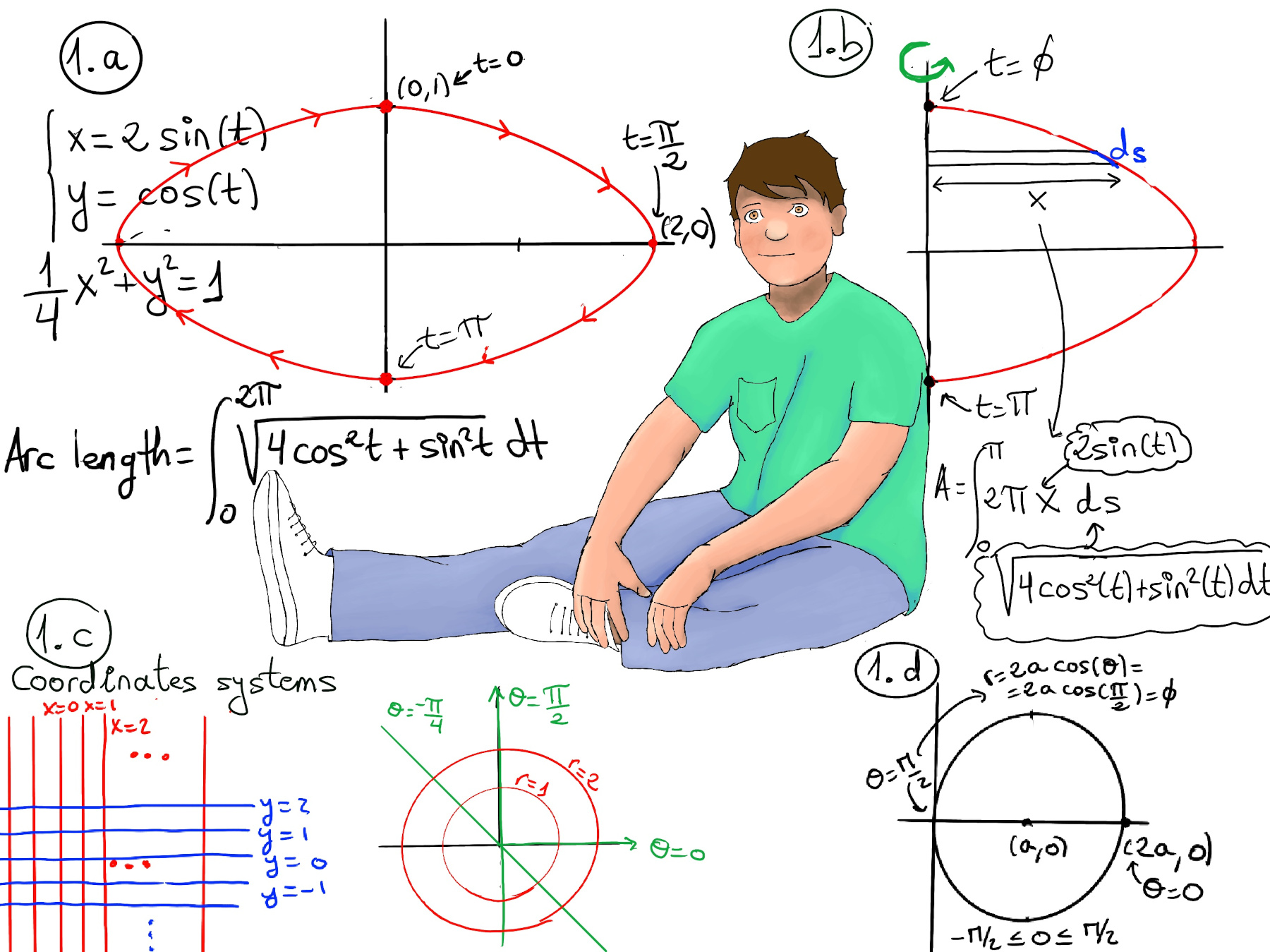

An the surface area of the ellipsoid formed by revolving x = 2sin(t), y = cos(t) around the y-axis -Figure 1.b.- = $\int_{0}^{π} 2πxds = \int_{0}^{π} 2π(2sin(t))\sqrt{4cos^2(t)+sin^2(t)}dt$
Polar coordinates are an alternative way of specifying the position of a point in a plane using two quantities: the radial distance (r) and the angular coordinate (θ). Instead of using the Cartesian coordinates (x, y), polar coordinates use the pair (r,θ) where r represents the distance from the origin or pole to the point, and θ is the angle formed by the ray from the origin to the point with the horizontal or x-axis, and we typically assume 0 ≤ r < ∞, 0 < θ ≤ 2π.
More formally, x = rcos(θ), y = rsin(θ), r = $\sqrt{x^2+y^2}, θ = tan^{-1}\frac{y}{x}$ (Figure 1.c.), e.g. (x y) = (1, -1), r = $\sqrt{1^2+1^2} = \sqrt{2},θ = arctan(\frac{y}{x}) = arctan(\frac{-1}{1}) = \frac{-π}{4}$ where θ is in the fourth quadrant.
Some typical examples are the circle (r = a), rays (θ = c), and the Archimedean spirar (r = aθ -a spiral with a constant rate of increase in the radial distance -r- as the angle -θ- increases).

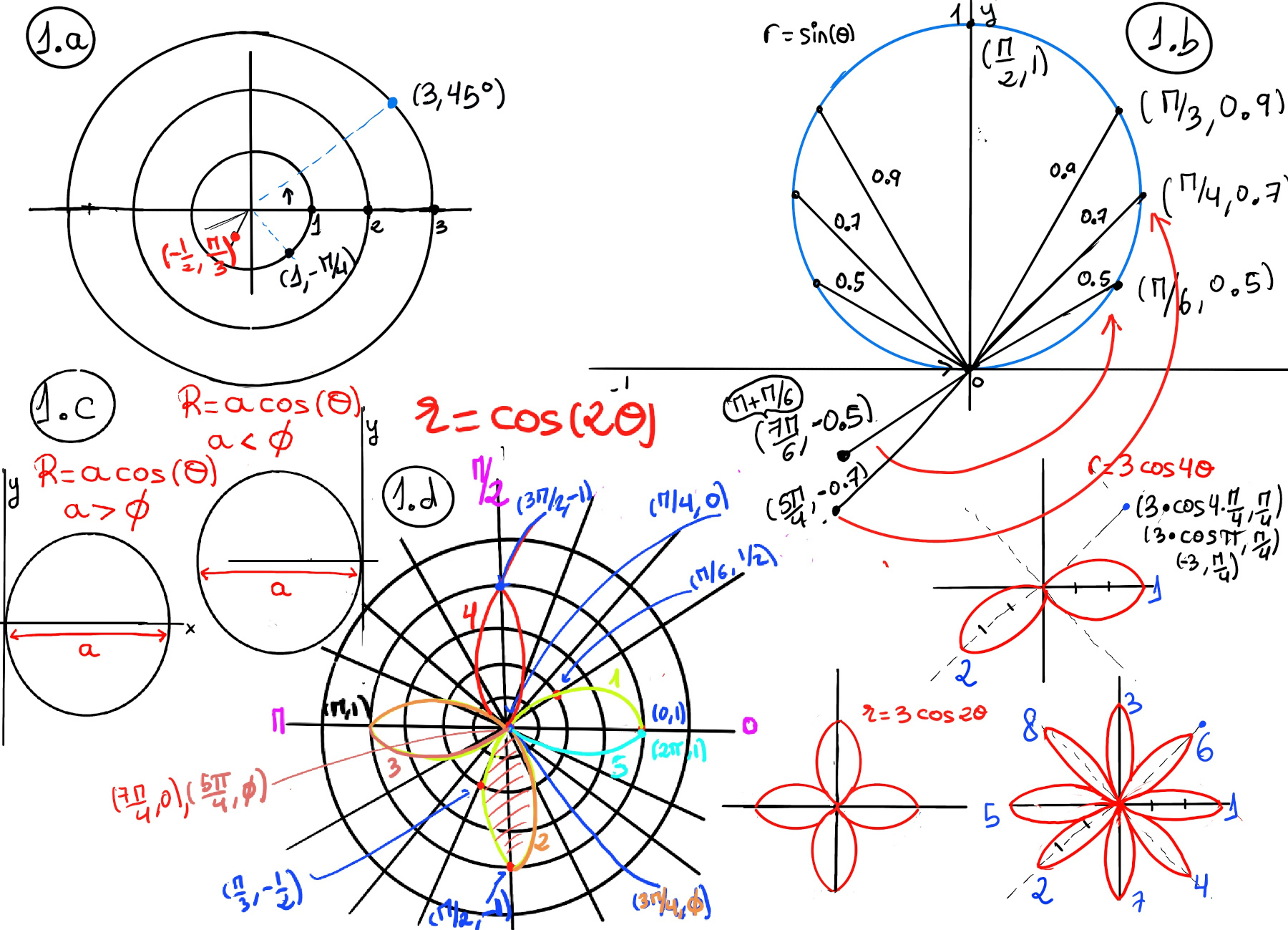

How to graph polar coordinates? Let’s plot (3, 45°) -a ray of 45° measured from the x-axis counter-clockwise and the point is going to be in the third circle-, (1, -π⁄4), and (-1⁄2, π⁄3) -Figure 1.a- When graphing a polar coordinate with a negative radius, you move from the pole in the direction opposite the given positive angle.
In our case, consider the point (-1⁄2, π⁄3). The negative sign indicates the direction, not the distance, which is always considered positive. x = rcos(θ) = (-1/2)cos(π⁄3) = -1/4, y = rsin(θ) = (-1/2)sin(π⁄3) = -√3/4. The rectangle form is (-1/4, -√3/4). The second representation is (1⁄2, π⁄3 + π).
The point (x,y) = (0, 1) corresponds to (r, θ) = (1, π/2), meaning 1/4 turn counterclockwise from the positive axis. However, we could we could equally well get to this point by a 3/4 turn clockwise, giving (r, θ) = (1, −3π/2). It is also useful to allow negative radius: (−r, θ) means to move out along the line at angle θ, but in the opposite direction from the positive ray, along the ray θ ± π; thus: (−r, θ) = (r, θ ± π).
Let’s consider the polar curve: r = sin(θ). Look along the positive x-axis in direction θ = 0, and draw the origin, r = sin(0) = 0. As you increase θ > 0, turning slowly to the left, you increase the radius as sin(θ) increases (r = sin(π/6) = 0.5, r = sin(π/4) = 0.7, r = sin(π/3) = 0.9). The radius tops out at 1 when θ = π/2 along the positive y-axis; and as you continue to turn, the point comes back in to the origin when θ = π. After that, as you turn toward negative y directions (π ≤ θ ≤ 2π) the radius becomes negative, in fact retracing the original circle (Figure 1.b.).
r = acos(θ) is a circle towards the right (a > 0) or the left (a < 0) where a is the diameter of the circle (Figure 1.c.).
Let’s plot r = 3cos(2θ) and r = 3cos(4θ), r = 3cos(6θ), r = 3cos(8θ) (Figure 1.d), we are going to have a four and eight “leaf roses”. the distance from the origin to the end of the leaf is going to be determined by the constant 3. The number that multiply θ determines how many leafs you have, so we will have roses with 4 and 8 respectively. Besides, r = 3cos(2θ), the first leave for the cosine will be in the positive x direction.

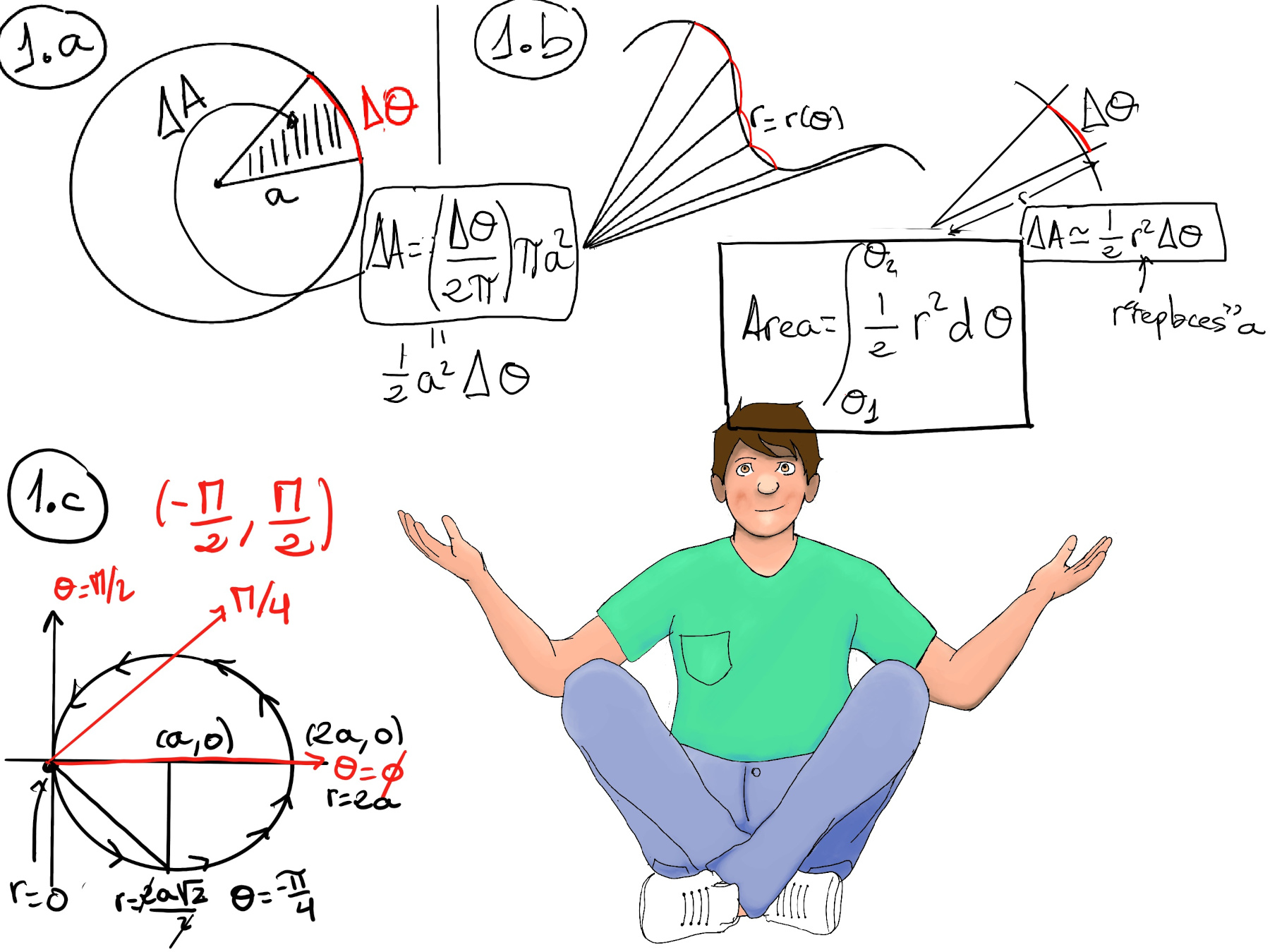

The area, A, of a circle can be found by multiplying Pi (3.14) by the radius squared = πa2. The arc length if the percentage ($\frac{Δθ}{2π}$) of the total area of the circle, so equals ΔA =$\frac{Δθ}{2π}πa^2 =\frac{1}{2}a^2Δθ$, (Figure 1.a)
To calculate the area of an area enclosed by a polar curve, the reader should notice that ΔA ≈ $\frac{1}{2}r^2Δθ$, at an infinitesimal scale dA = $\frac{1}{2}r^2dθ$, so the Area = $\int_{θ_1}^{θ_2} \frac{1}{2}r^2dθ$ (Figure 1.b.)
Example, the circle with center (a, 0) and radius a, is described by the polar equation r = 2acos(θ), (x-a)2 + y2 = a2, $\frac{-π}{2}< θ < \frac{π}{2}$ (Notice that cos(±π⁄2) = 0). Area = $\int_{\frac{-π}{2}}^{\frac{π}{2}} \frac{1}{2}(2acos(θ))^2dθ = 2a^2\int_{\frac{-π}{2}}^{\frac{π}{2}} cos^2(θ)dθ = 2a^2\int_{\frac{-π}{2}}^{\frac{π}{2}} \frac{1+cos(2θ)}{2}dθ = a^2(θ +\frac{1}{2}sin(2θ))\bigg|_{\frac{-π}{2}}^{\frac{π}{2}} = a^2(\frac{π}{2}-\frac{-π}{2}) = πa^2,$ aka the area of the circle 😃
