Sketching graphs

Tell me and I’ll forget; show me and I may remember; involve me and I’ll understand, Chinese Proverb.

Functions of two variables: An Overview

Functions of two variables are natural generalizations or extensions of functions of one variable. They extend single-variable calculus into multi-dimensional space. They are mathematical functions $f: D \subseteq \mathbb{R}^2 \to \mathbb{R}$, meaning they map an ordered pair of real numbers $(x, y)$ in a domain $D$ to a unique real output $z = f(x, y)$.

They are fundamental in multivariable calculus and have numerous applications in science, engineering, and economics. Here, $x$ and $y$ are the independent variables, while $z$ is the dependent variable.

Definition. A function of two variables assigns a unique real number to each ordered pair in its domain. It allows us to model physical and mathematical quantities that depend on more than a single factor.

Sketching graphs

Sketching 3D quadric surfaces relies heavily on finding their traces—the 2D cross-sections created when the surface intersects the coordinate planes ($x=0$, $y=0$, $z=0$).

The Ellipsoid

The general ellipsoid is a closed quadratic surface defined by $\frac{x^2}{a^2}+\frac{y^2}{b^2}+\frac{z^2}{c^2} = 1$, where $a$, $b$, and $c$ are the lengths of the semi-axes. The points (a, 0, 0), (0, b, 0), and (0, 0, c) lie on the surface.

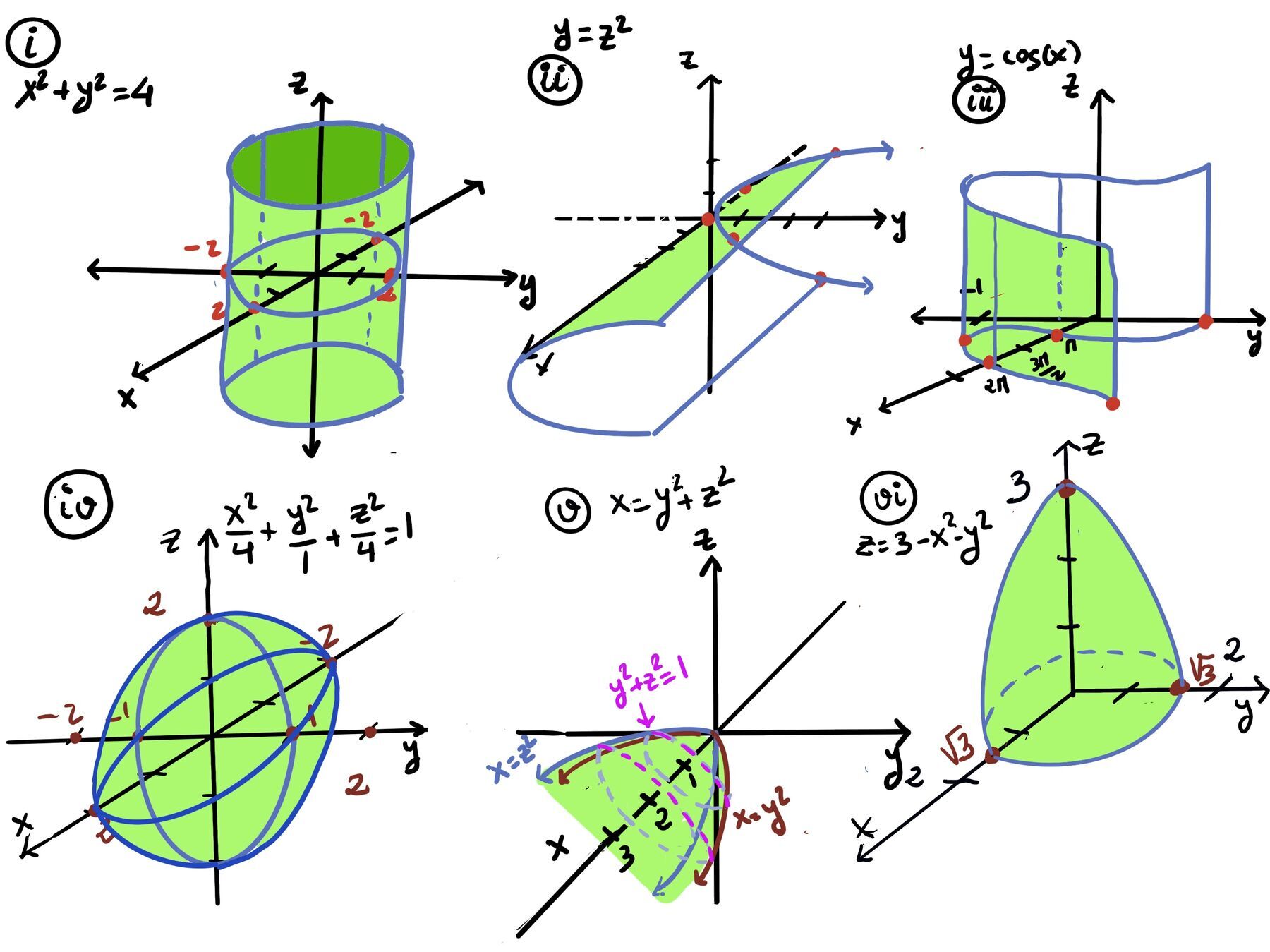

For the equation $x^2+4y^2+z^2 = 4$, we divide the entire equation by 4 to find the standard form: $\frac{x^2}{4}+ \frac{y^2}{1}+ \frac{z^2}{4} = 1$. This is an ellipsoid with its center at the origin (0, 0, 0) where a = 2, b = 1, and c = 2 are the length of the semi-axes (Figure iv).

Traces:

• In the yz-plane (x = 0), $\frac{y^2}{1}+ \frac{z^2}{4} = 1$ we see an ellipse with a vertical semi-axis of length 2 (along the z-axis) and a horizontal semi-axis of length 1 (along the y-axis).
• In the xz-plane (y = 0), we see a circle centered at the origin with radius 2, $\frac{x^2}{4}+ \frac{z^2}{4} = 1$.
• In the xy-plane (z = 0), we see an ellipse with a horizontal axis of length 2 (along the x-axis) and a vertical axis of length 1 (along the y-axis), $\frac{x^2}{4}+ \frac{y^2}{1} = 1$.

Elliptic Paraboloids

Paraboloids open along the axis of the linear variable (the variable not being squared).

Case A: Opening along the $x$-axis ($x = y^2 + z^2$).

To any fixed x-value, $y^2 + z^2$ represent a circle in the yz-plane with radius $\sqrt{x}$. As x increases, the radius of the circle increases. It is a paraboloid. It opens along the x-axis because x is expressed as a sum of the squares of y and z (x must be positive) e.g., $x =0, y^2 + z^2 = 0$ is just a point, the origin (0, 0, 0). $x = 1, y^2 + z^2 = 1$ is a circle in the yz-plane with radius 1. $x = 2, y^2 + z^2 = 2$ is a circle in the yz-plane with radius $\sqrt{2}$ (Figure v).

Case B: Opening along the $z$-axis ($z = 3 - x^2 - y^2$)

Because $z$ is a decreasing function of the squares of $x$ and $y$, the paraboloid opens downwards. Its vertex is shifted up to $(0, 0, 3)$. For any fixed z-value, the equation $x^2 + y^2 = 3 - z$ represents a circle in the xy-plane with radius $\sqrt{3-z}$. For z = 3, $x^2 + y^2 = 0$. This is just a point at (0, 0, 3). For z = 2, $x^2 + y^2 = 1$. This is a circle in the xy-plane with radius 1. For z = 0, $x^2 + y^2 = 3$. This is a circle in the xy-plane with radius $\sqrt{3}$ (Figure vi).

Hyperbolic Paraboloid (Saddle Surface)

A hyperbolic paraboloid is a type of quadratic surface in three-dimensional space. It is often referred to as a “saddle surface” because of its distinctive shape, which curves upwards in one direction and downwards in the perpendicular direction. The general equation for a hyperbolic paraboloid is $z = \frac{y^2}{b^2}-\frac{x^2}{a^2}$

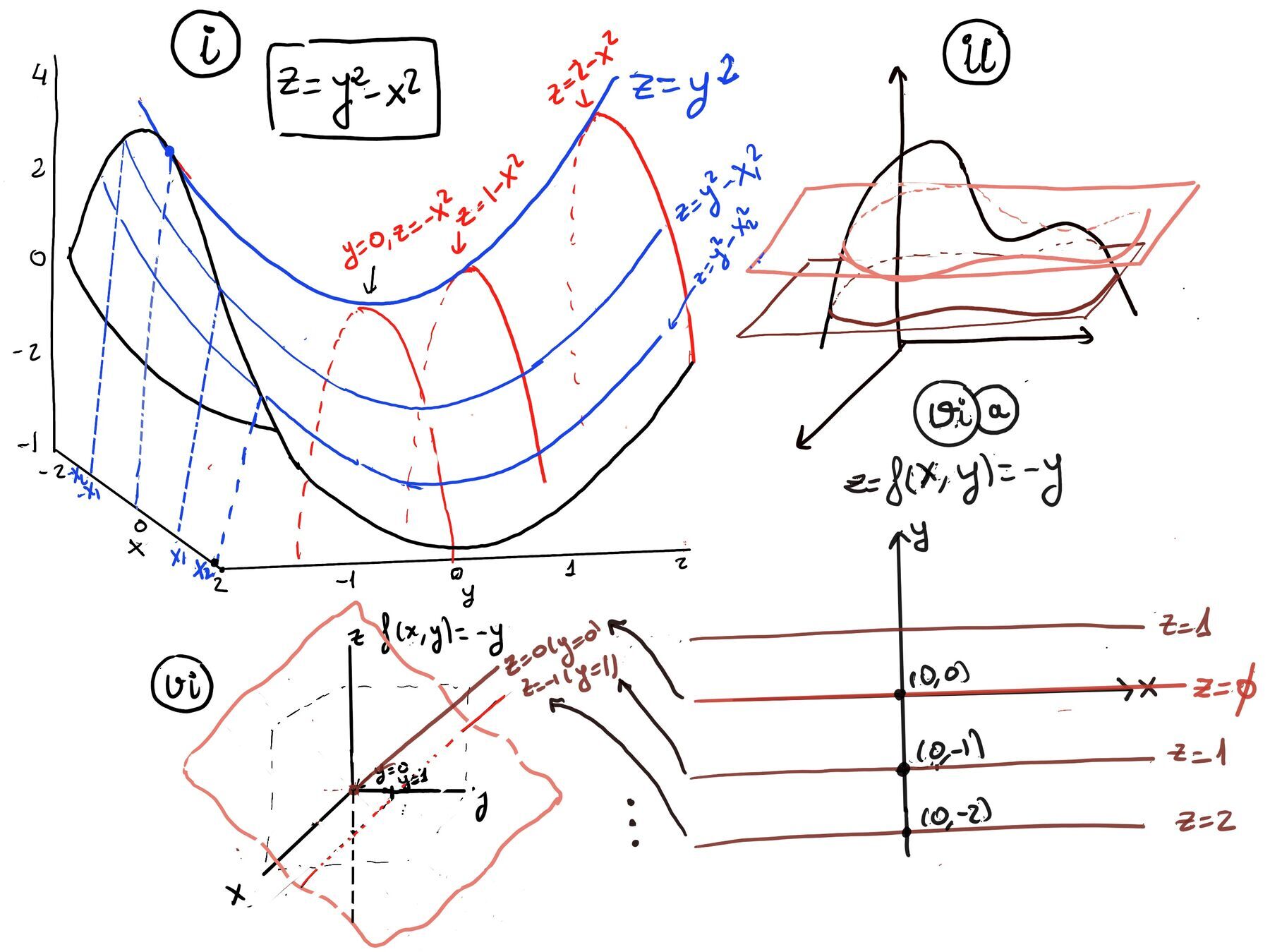

• $z = y^2 - x^2$ is known as a hyperbolic paraboloid. It is a saddle surface because it curves upwards in one direction (along the y-axis) and downwards in another direction (along the x-axis) (Figure i).

Analyzing Traces:

1. xy-Plane Trace ($z=0$): Set z = 0, $y^2 = x^2 \implies y = \pm x$. In the xy-plane, the trace is a pair of straight lines y = x and y = −x crossing at the origin.
2. xz-Plane Trace ($y=0$): Set y = 0. $z = -x^2$. This is a downward-opening parabola in the xz-plane. Fixed $y$-values produce parallel parabolas shifted upward by $y^2$.
3. yz-Plane Trace ($x=0$): Set x = 0. $z = y^2$. This is an upward-opening parabola in the yz-plane. Fixed $x$-values produce parallel parabolas shifted downward by $x^2$.

The surface is symmetric with respect to both the xz-plane and the yz-plane. At the origin (0, 0, 0), the function equals zero. Along the y-axis (x = 0), $z = y^2$ describes an upward-opening parabola. For both positive or negative values of y, the z-values increase as $y^2$, forming a parabolic shape opening upwards. For fixed x-values, such as $x_1, x_2, \cdots $ the equation $z=y^2-x_i^2$ represents a series of upward-opening parabolas shifted downward by the constant $x_i^2$. These parabolas have their vertices at $z = -x_i^2$ on the z-axis.

Along the x-axis (y = 0), $z = -x^2$ describes a downward-opening parabola. For both positive and negative values of x, the z-values decrease as $-x^2$, forming a parabolic shape opening downward. For fixed y-values, such as $y = y_1, y_2, \cdots$ the equation $z = y_i^2-x^2$ represents a series of downward-opening parabolas shifted upward by the constant $y_i^2$. These parabolas have their vertices at $z =y_i^2$ on the z-axis. This combination of upward and downward curvatures gives the surface its characteristic saddle shape.

The Double Cone

A double cone consists of two cones placed apex to apex (the vertex at the top or bottom). The double cone is given by the algebraic equation $\frac{z^2}{c^2}= \frac{x^2+y^2}{a^2}$.

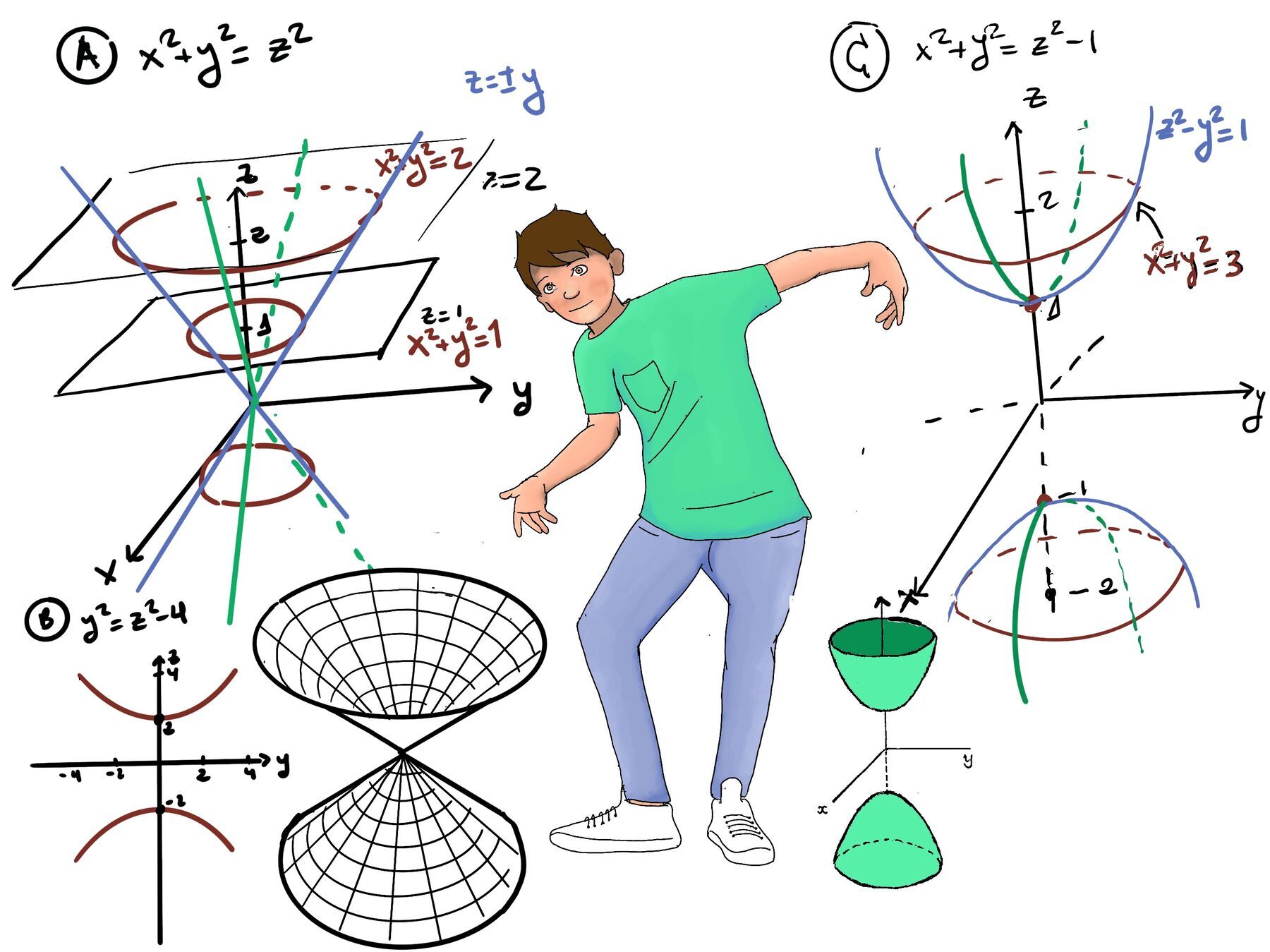

For the specific equation $x^2 + y^2 = z^2$, the surface is a double cone centered at the origin. It is symmetric with respect to the x-, y-, and z-axes (Figure A).

Analyzing Traces

1. xy-Plane, z = 0, $x^2 + y^2 = 0$ is just the origin (0, 0, 0). z = 1, $x^2 + y^2 = 1$ represents a circle of radius 1. z = 2, $x^2 + y^2 = 2$ is a circle of radius $\sqrt{2}$. In other words, moving away from the origin, in planes parallel to the xy-plane (z = k), the surface form circles of increasing radius.
2. yz-Plane. Set x = 0, $y^2 = z^2 \implies z = \pm y$, these are two lines passing through the origin with slopes of 1 and -1. For different values of x, say $x = x_1, x_2, \cdots$ the equation becomes $y^2 = z^2 -x_i^2$. These represent hyperbolas opening in the y- and z-directions (Figure B).
3. xz-Plane. Set y = 0, $x^2 = z^2 \implies z = \pm x$, which are two lines passing through the origin with slopes of 1 and -1. For different values of y, say $y = y_1, y_2, \cdots $ the equation becomes $x^2 = z^2 -y_i^2$. These represent hyperbolas opening in the x- and z-directions.

In the xz- and yz-planes, the surface forms intersecting lines that pass through the origin and create a cone shape. Combining these traces, we see that the surface forms two identical cones, one opening upwards and the other downwards, meeting at the origin.

Two-Sheeted Hyperboloid

The equation $x^2 + y^2 = z^2 - 1$ is a specific case of the general two-sheeted circular hyperboloid $\frac{x^2}{a^2}+\frac{y^2}{b^2}-\frac{z^2}{c^2} = -1$. Rearranging our equation gives $z^2 - x^2 - y^2 = 1$, where $a = b = c = 1$ (Figure C).

The surface consists of two separate parts, one for $z \ge 1$ and one for $z \le -1$, which are symmetrical about the xy-plane.

Analyzing Traces

1. 📌 xy-Plane. Set z = 0, $x^2 + y^2 = -1$. This equation has no real solutions. Therefore, there are no intersections with the xy-plane.
   For z = ±1, $x^2 + y^2 = 0$. The only solutions are the points (0, 0, 1) and (by symmetry) (0, 0, -1).
   For z = ±2, $x^2 + y^2 = 3$. These are two circles with radius $\sqrt{3}$ centered at (0, 0, 2) and (0, 0, -2).
   Similarly, for any z = k where $|z| \gt 1, x^2 + y^2 = k^2 -1$, i.e., circles with radii $\sqrt{k^2-1}$.
   As ∣𝑧∣ increases, the circles grow. This is the hallmark of a two‑sheeted hyperboloid: each sheet expands outward as you move away from the “tip” at $z = \pm 1$.
2. 📌 yz-Plane. Set x = 0, $y^2 - z^2 = -1$. Rearranging gives: $z^2 - y^2 = 1$. This is a hyperbola opening upward and downward along the z‑axis. Vertices at $z = \pm 1$. Symmetric in 𝑦.
3. 📌 xz-Plane. Set y = 0, $x^2 = z^2 -1$. Rearranging gives:$z^2 - x^2 = 1$. Same hyperbola as before, but now symmetric in 𝑥.

🧠 This surface forms two separate, symmetrical sheets opening along the z-axis, creating the shape known as a two-sheeted hyperboloid. Each is shaped like a “flared bowl” opening along the z‑axis.
